Product details

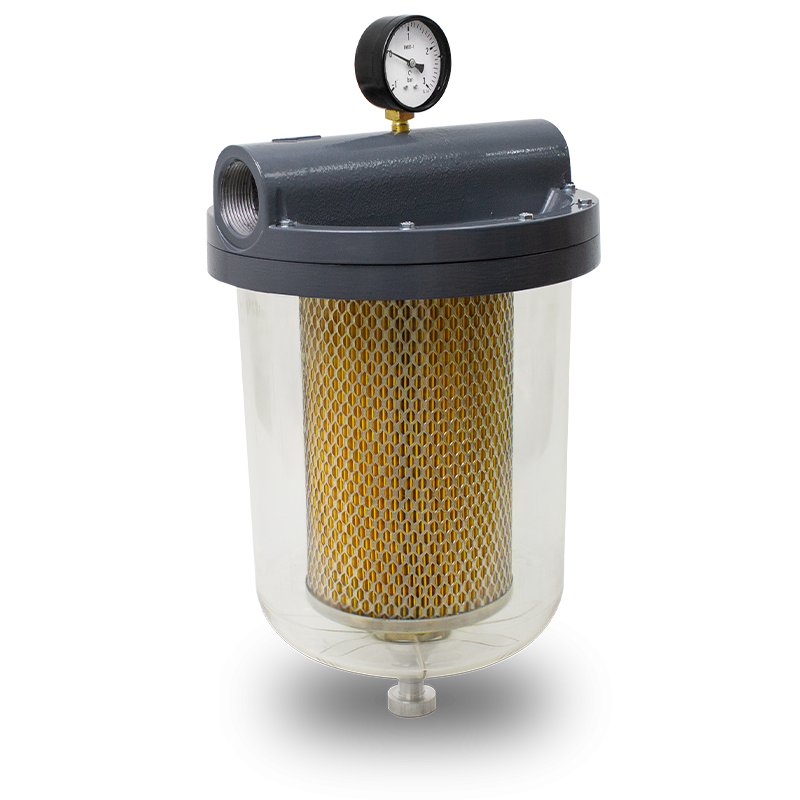

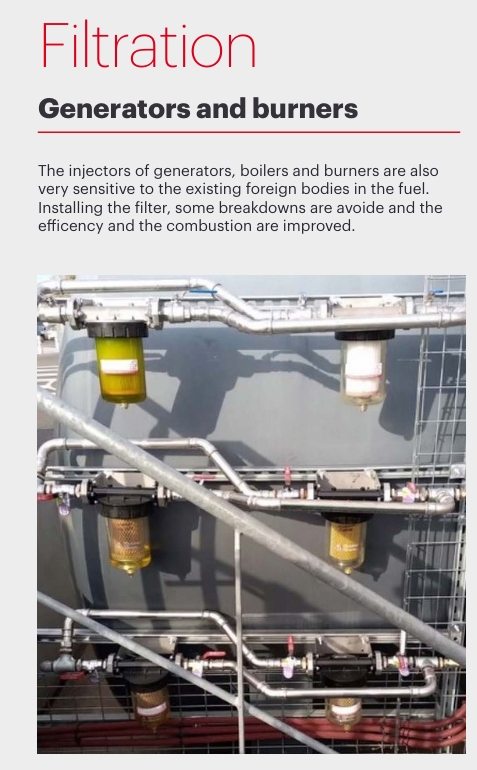

These microlfilters are suitable for a trustworthy microfiltration, with the 5 µm (micron) water-repellent system (water separation) (only the FG-150 model). Because of their transparent vessel, it is shown the amount of the inner liquid. The polluted fuel and the impurities, kept between the filtering cartridge and the transparent vessel, can be extracted through the manual lower valve. It has built in a vacuum gauge. Technical data: Volume: 10 litres Filtration: diesel and petrol: 5 µm (micron) (with water separation at 93 %) biodiesel: 25 µm (micron) diesel · water absorbent: 15 µm (micron) Max. flow: 150 l/min Max. working pressure: 4 bar Vessel breaking pressure: 8 bar Temperature: -10 ºC · + 50 ºC Filter cover: aluminium casting Transparent vessel: PA Inlet / Outlet: F1 1/2" GAS (BSP) Manual lower drain valve to empty impurities Automatic degasser Installation: on the pumping kit suction or delivery Size and weight (approx.): Size: 260x491 mm (Ø x height) Weight: 8 kg The injectors of generators, boilers and burners are also very sensitive to the existing foreign bodies in the fuel. Installing the filter, some breakdowns are avoide and the efficency and the combustion are improved
