Description
Product details

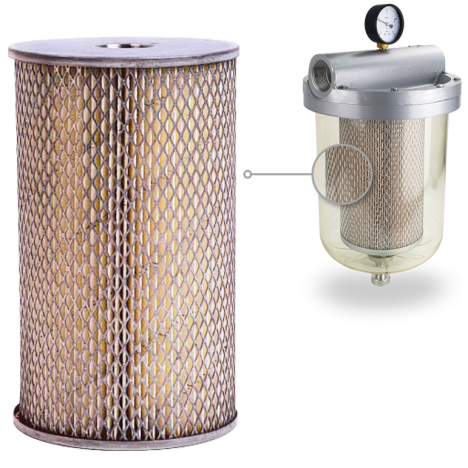

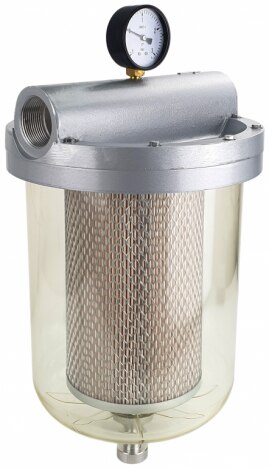

FG - 150 - 5 µm · 25 or 15 µm 160 l/min · F1 1/2' GAS (BSP) Specially suitable for diesel, petrol, AVGAS, JET A-1 FG-150 · 5 µm (micron) · water-repellent filtering paper 66050 Specially suitable for biodiesel FG-150BIO · 25 µm (micron) 66051 Specially suitable for diesel · water absorbent FG-150A · 15 µm (micron) · water absorbent 66053 These microfilter's are suitable for a trustworthy microfiltration, with the 5 µm (micron) water-repellent system (water separation) (only the FG-150 model). Because of their transparent vessel, it is shown the amount of the inner liquid. The polluted fuel and the impurities, kept between the filtering cartridge and the transparent vessel, can be extracted through the manual lower valve. It has built in a vacuum gauge. Technical data: Volume: 10 litres Filtration: diesel and petrol: 5 µm (micron) (with water separation at 93 %) biodiesel: 25 µm (micron) diesel · water absorbent: 15 µm (micron) Max. flow: 160 l/min Max. working pressure: 4 bar Vessel breaking pressure: 8 bar Temperature: -10 ºC · + 50 ºC Filter cover: aluminium casting Transparent vessel: PA Inlet / Outlet: F1 1/2' GAS (BSP) Manual lower drain valve to empty impurities Automatic degasser Installation: on the pumping kit suction or delivery Size and weight (approx.): Size: 260x435 mm (Ø x height) Weight: 8 kg FG-150 filtering spare-parts FG-150 filtering spare-parts - Filtering element spare kit of 5 µm (micron) + joints 660508001 - Filtering element spare kit of 25 µm (micron) + joints 660508002 - Filtering element spare kit (water absorbent) of 15 µm (micron) + joints 660508003
