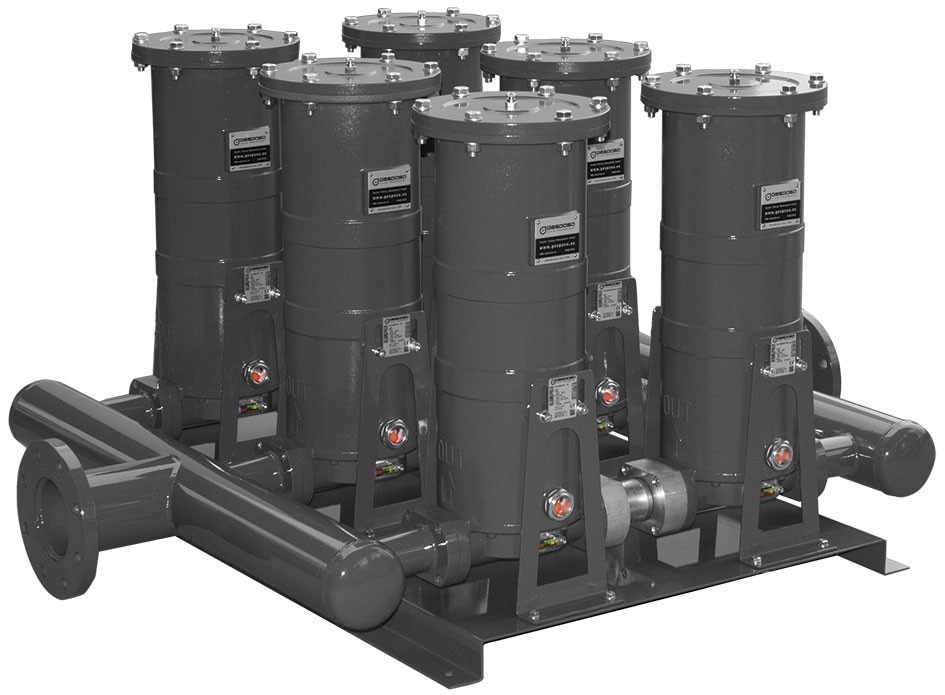

4" 50/15 µm water absorbent FG-1000x2 Fixed filtering kit · 50/15 µm · 4" connection 66310 Two-stage microfiltration kits designed for the fuel (diesel, petrol, kerosene and oil) filtering of all type of tanks, getting the microfiltered fluid free of solid impurities and water, both free and dissolved. Special superficial interior and external finish against corrosion. Aluminium filter body Steel collector Steel sheet base Two-stage filtration: 1st filter with filtering element to eliminate the solid particles higher than 50 µm (micron)* 2nd filter with monitor cartridge for water absorption (free and dissolved) and the elimination of solid particles higher than 15 µm (micron)* *Please ask for other micronages Max. pressure: 6 bar Max. flow at the best filtration: 1,000 l/min DIN2576 Flange: 4" Flange distance: 1,360 mm (approx.) COMPOSED OF: 1 fixed platform with the corresponding holes for its direct fixation on the ground 6 units of FG-300 microfilters composed of: manual drain valve to eliminate the residual air that there are during the filters filling differential manometer which shows when the filter has to be replaced or cleaned drain valve for the filtered liquid sampling inlet for the connection of compressed air to clean the filters without being disassembled Size and weight (approx.): Dim.: 1,360x1,140x710 mm (length x width x height) Weight: 186 kg
