Description
Product details

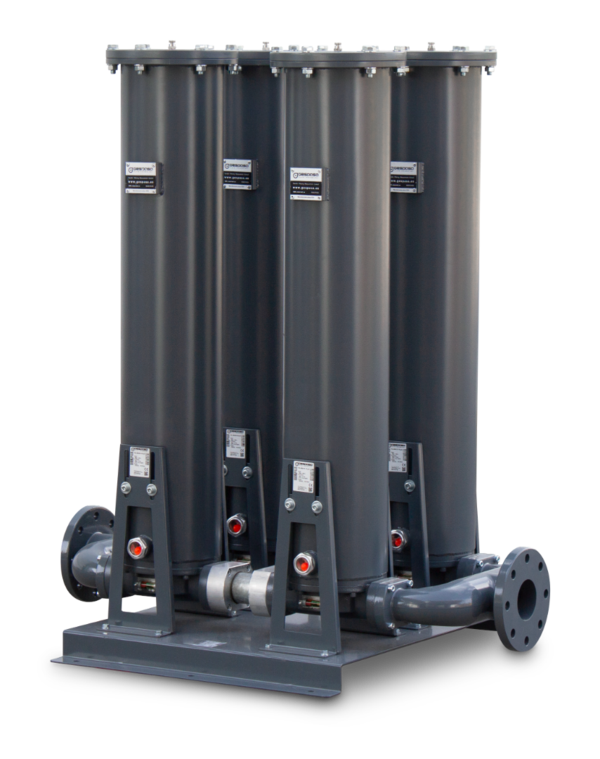

Manufacturer Supplier and Exporter of Diesel Polishing system in Ahmedabad Two-stage filtration kits designed for the fuel (diesel, petrol, kerosene and oil) filtering of all type of tanks, getting the microfiltered fluid free of impuritiesand water, both free and disolved. Two-stage filtration: 1st filtering element to eliminate solid particles higher than 50 µm (micron) 2nd filter with monitor cartridge for water absorption (free and dissolved) and the elimination of solid particles higher than 15 µm (micron) 1 fixed base made of steel 4 FG-450 filters: manual drain valves to eliminate the residual air differential manometer which shows when the filter has to be replaced or cleaned outlet for the filtered liquid sampling inlet for the connection of compressed air to clean the filters without being disassembled Maximum flow: 700 l/min Max. working pressure: 6 bar Max. housing pressure: 10 bar Material: Body: aluminium Collecteur: steel Base: steel Inlet/outlet connection: Flange DIN.2576: 3"
